D2L/Brightspace LTI 1.3 Configuration

Created by Alexa Clemmons, Modified on Mon, 13 Oct at 4:20 PM by Alexa Clemmons

TABLE OF CONTENTS

Starting Fall 2025, Codon Learning offers a direct LTI 1.3 integration. We also still support integrations via Follett/Willo Labs when necessary. If you're looking for installation instructions for an integration via Willo, please click here.




Configure LTI 1.3 tool in Brightspace/D2L

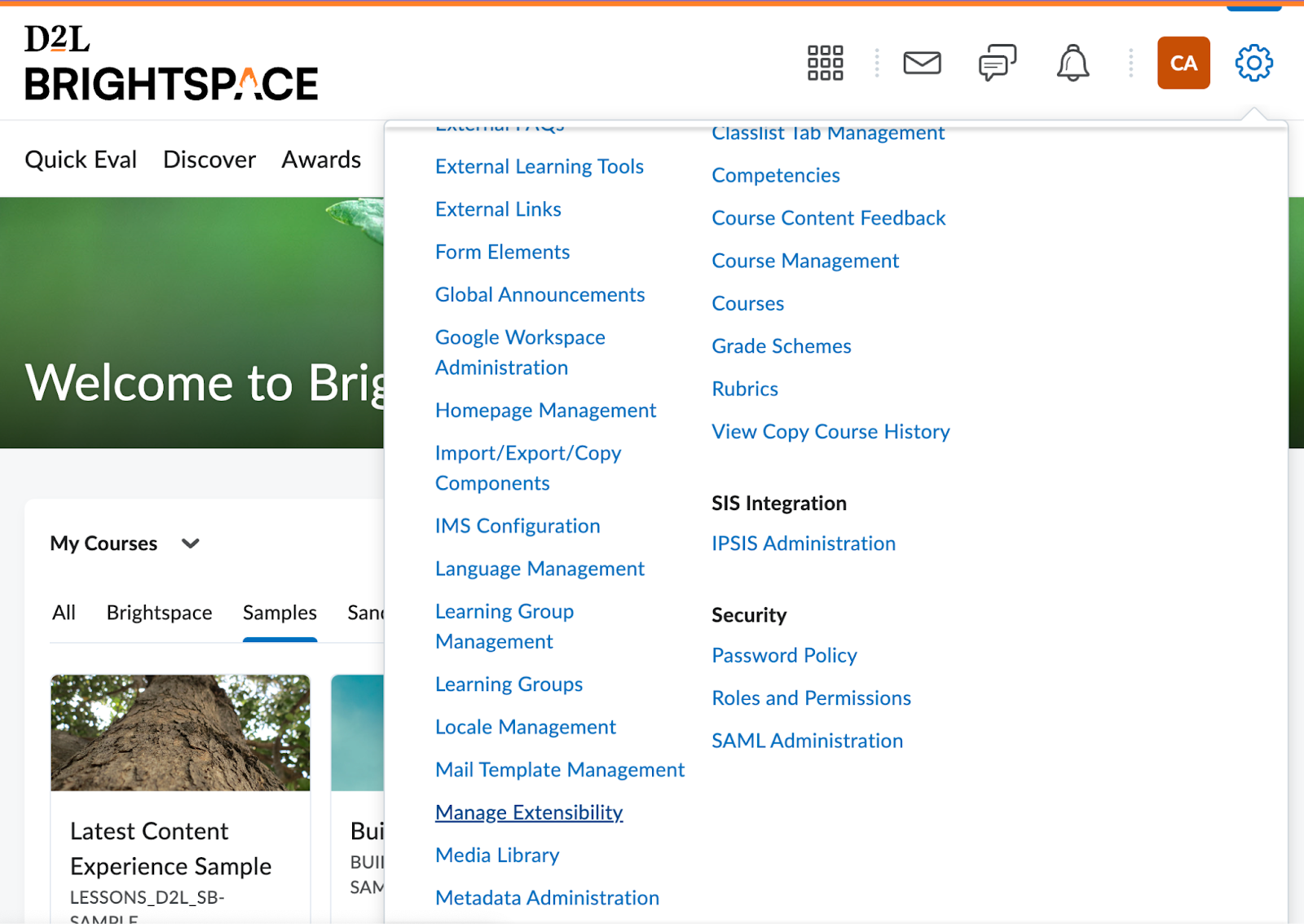

  1. Log into Brightspace/D2L as an admin. Navigate to Admin Tools > Manage Extensibility.

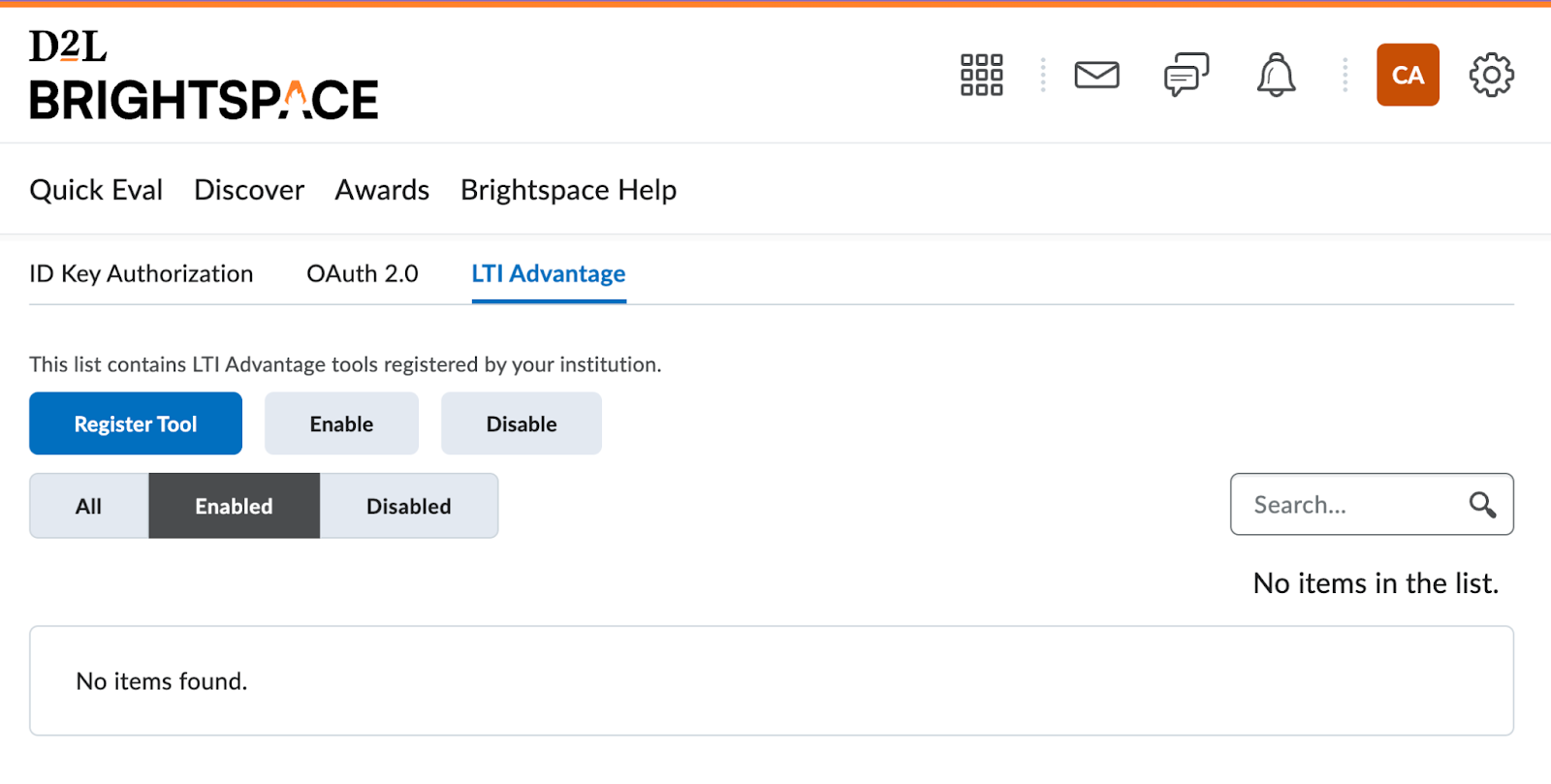

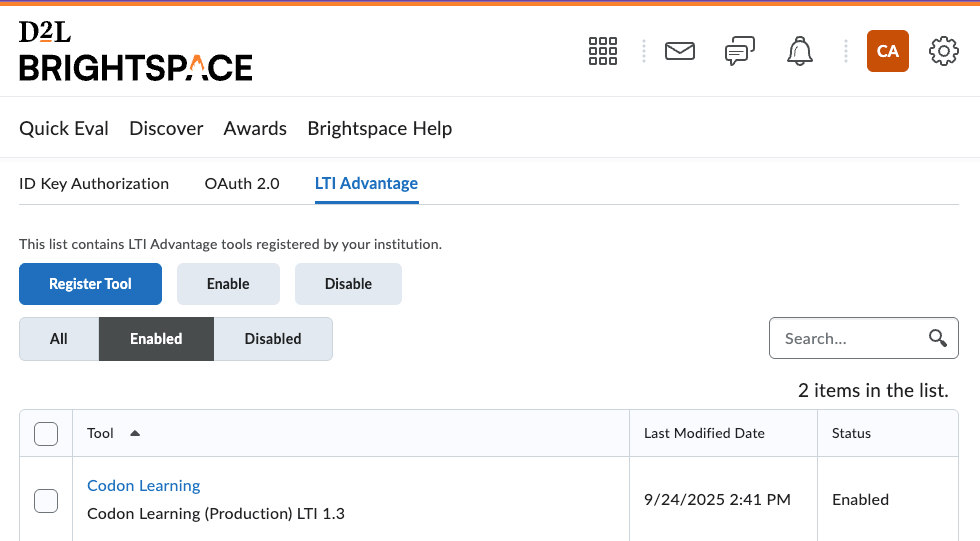

  1. Navigate to the LTI Advantage tab and click Register Tool.

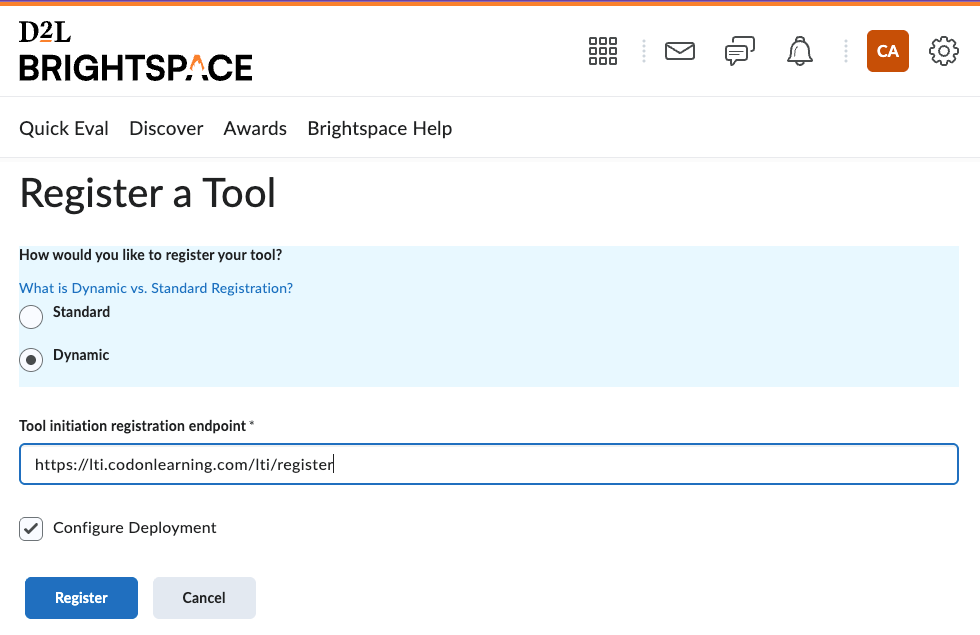

  2. Choose Dynamic and enter the following URL in the Tool Initiation Registration Endpoint field:

    https://lti.codonlearning.com/lti/register

  3. Select Configure Deployment and then click Register.

  4. Finish up the registration, ensuring that the tool is enabled.

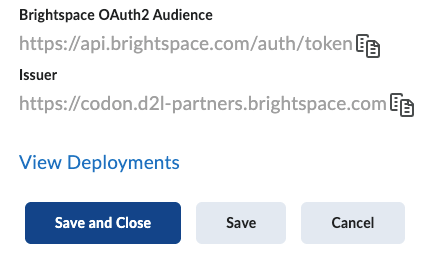

  5. Open the Codon Learning tool, scroll to the bottom, and click View Deployments.

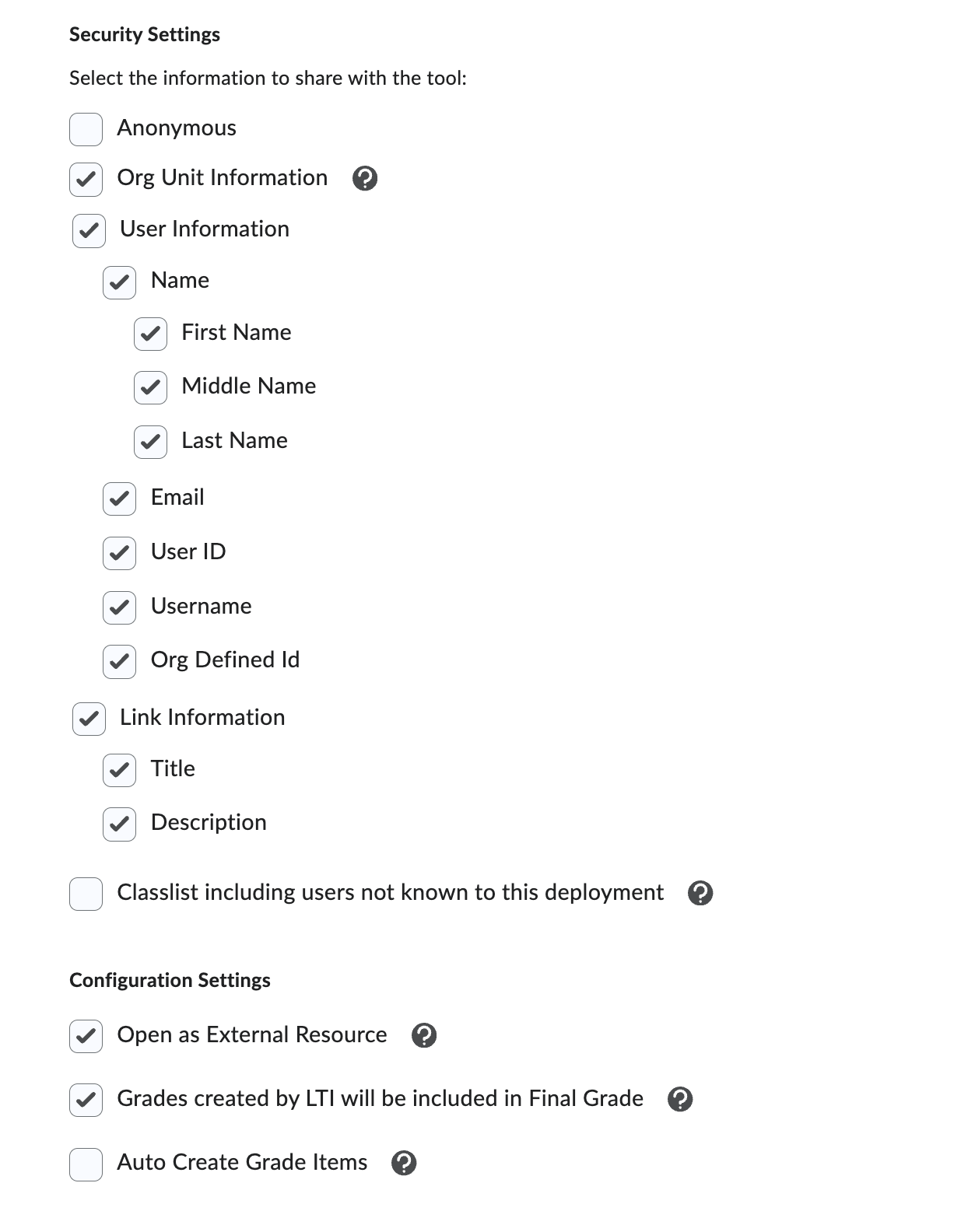

  6. Enable Org Unit Information and Link Information in the Codon Learning tool deployment settings.

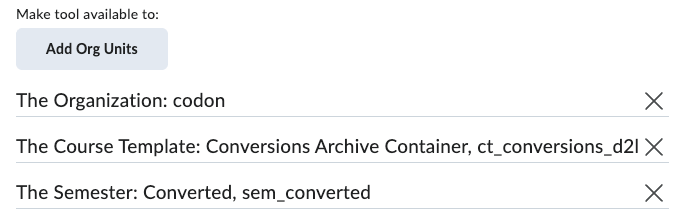

  7. If needed, Add Org Units to enable the tool for the course using Codon.

  8. Click Save and Close


Notify Codon to activate configuration

  1. Email your contact at Codon Learning to let them know when you've done the steps above so that they can finalize the integration for Codon.

  2. If testing, also include the email address for an instructor D2L account you'll use to test. All instructor users must have a pre-existing account in Codon for launch to work.



  1. Logged in as an instructor in D2L, open a test course.

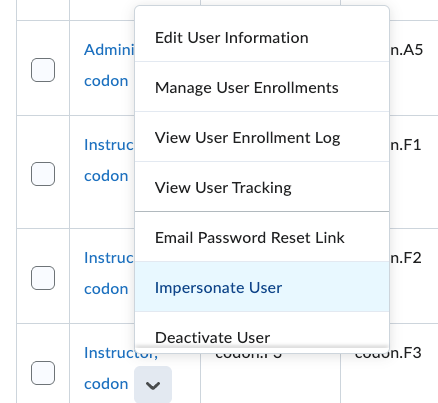

            ***If setting up the real course link on behalf of the instructor, please be sure to Impersonate User when launching from D2L to Codon so that instructor user information is sent via LTI launch.



  2. Navigate to Content and open the Unit where you would like to add the link. If needed, add a new Unit.

  3. Add the Codon tool to the unit.

    ***From D2L/Brightspace "Original": Click Add Existing Activity and select External Learning Tool from the dropdown menu.

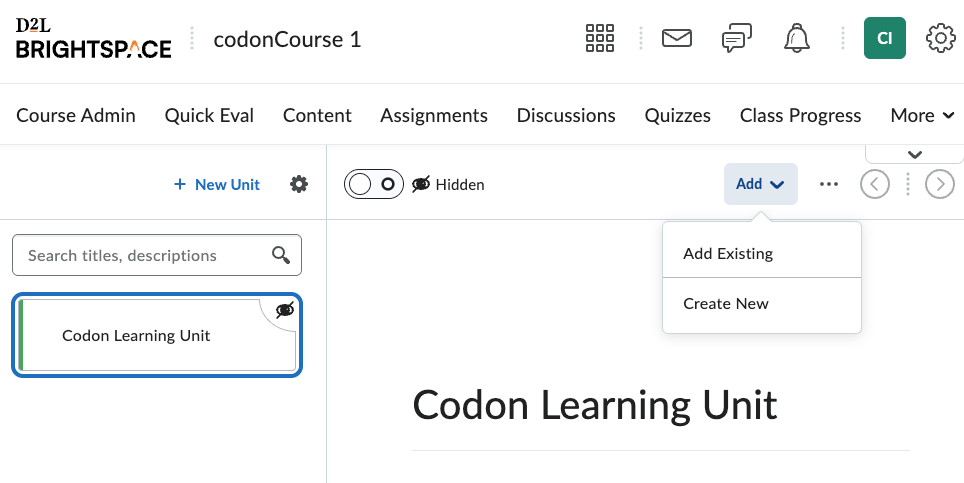

    ***From D2L/Brightspace "New Content": Click Add and then select Add Existing from the dropdown.

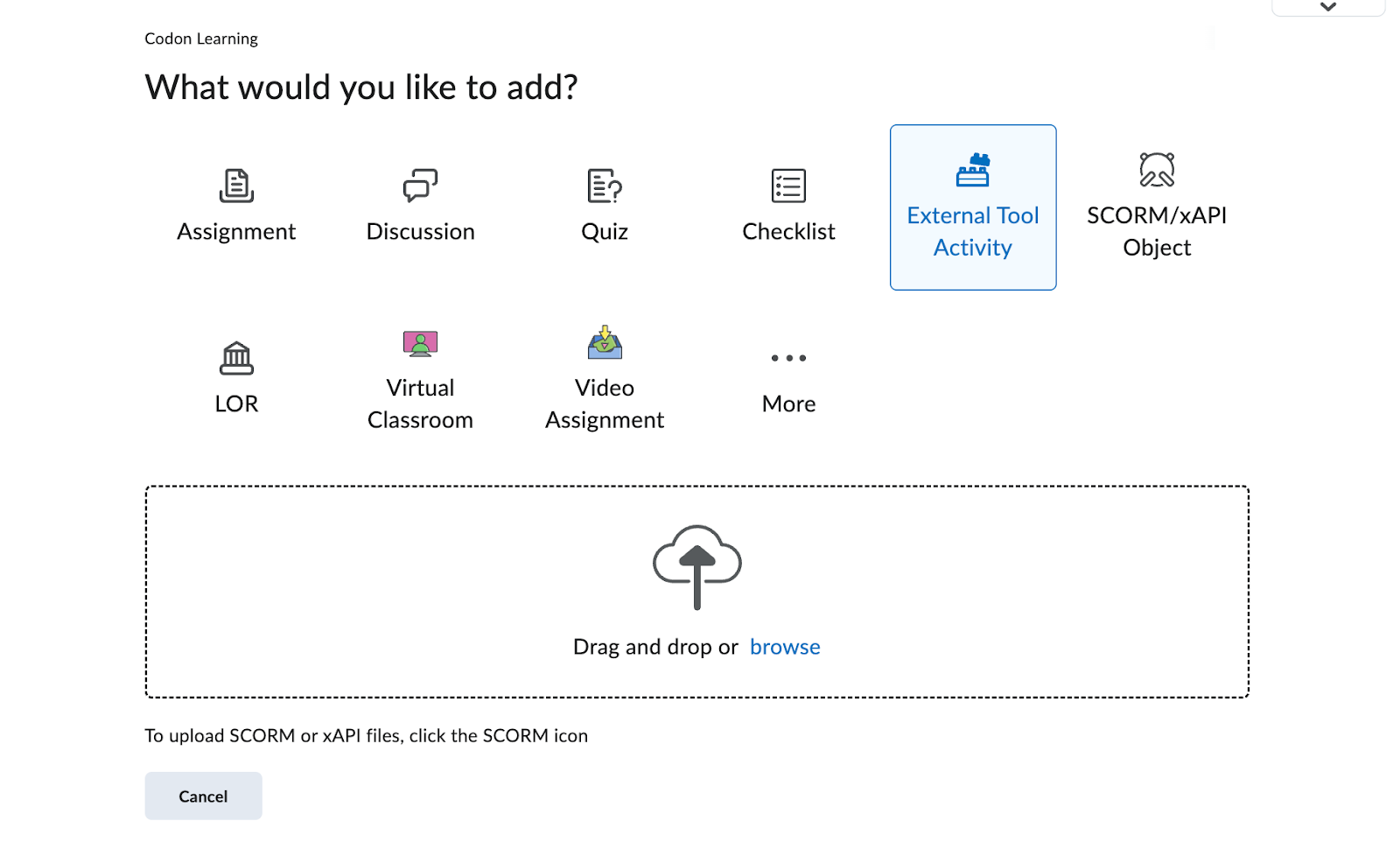

    Choose External Tool Activity and select Codon from the list of tools.

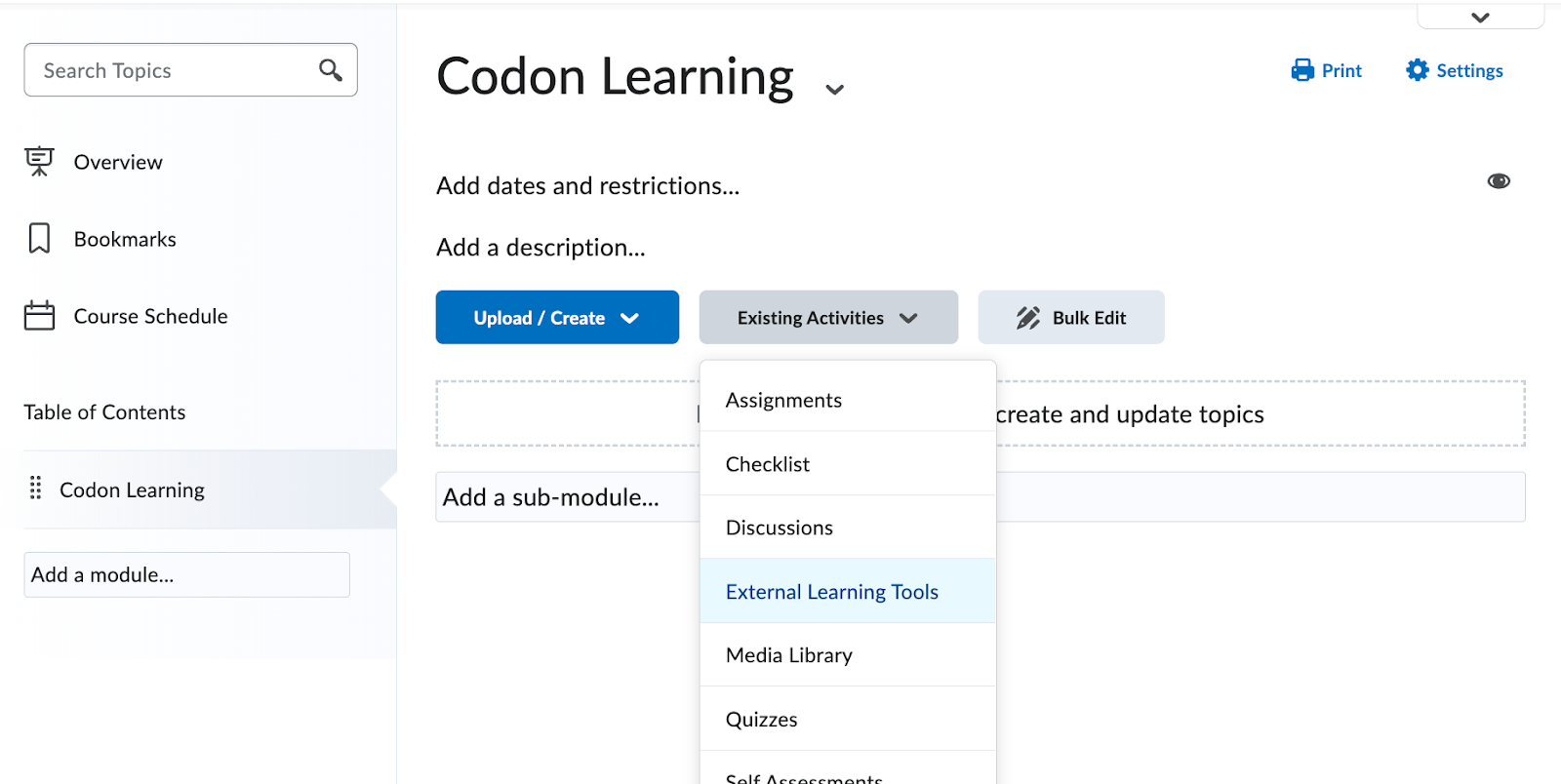

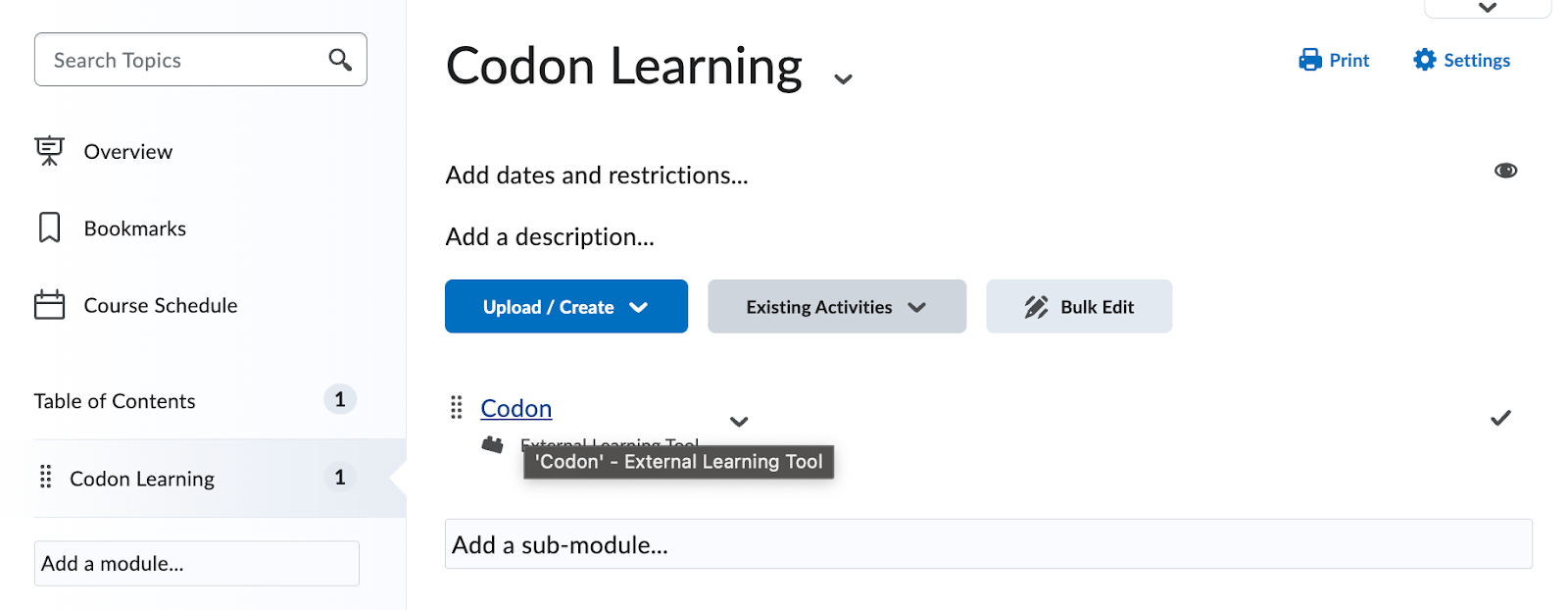

    ***From D2L/Brightspace "Original": Click Existing Activities and select External Learning Tools from the dropdown menu

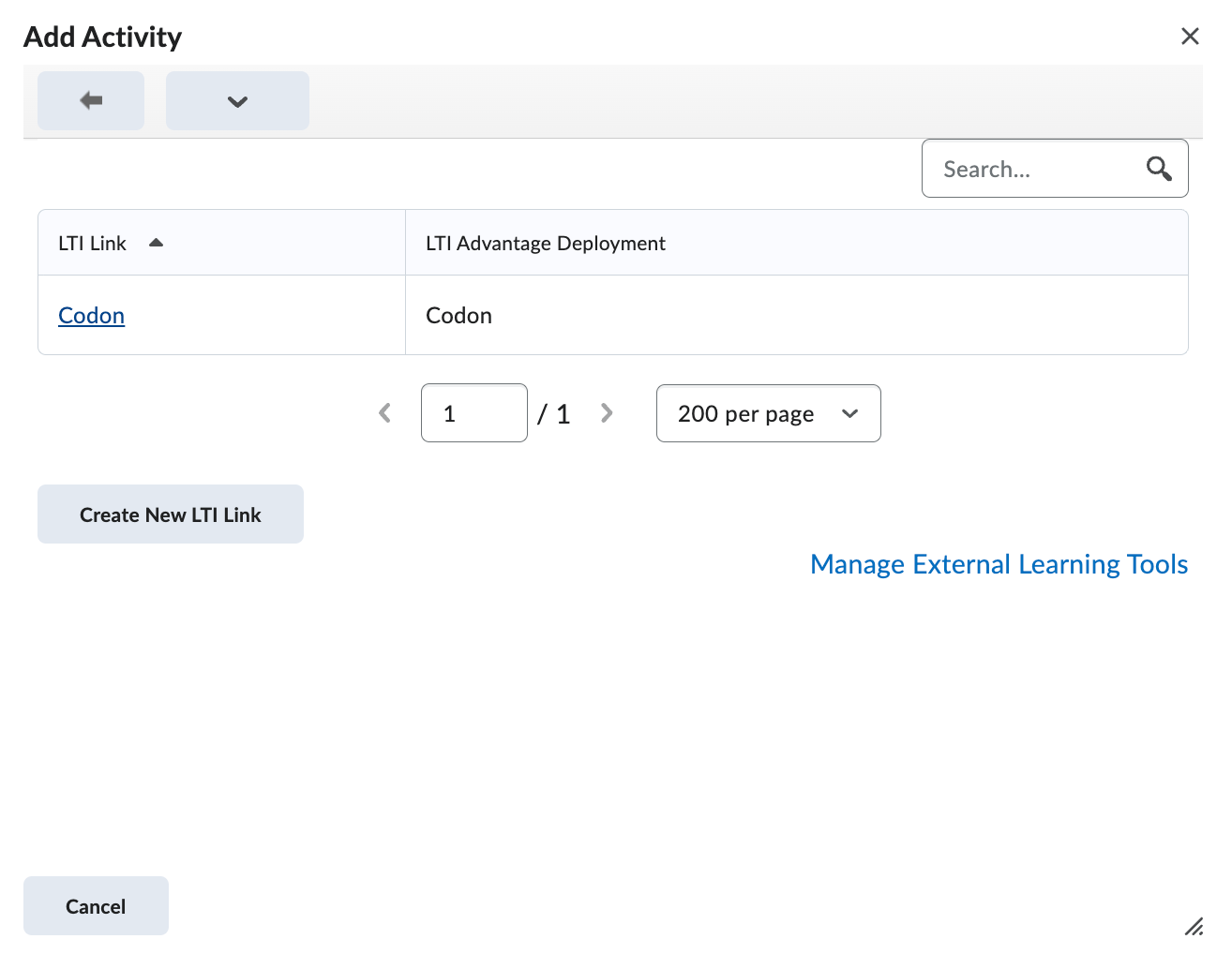

  4. Select Codon Learning from the list of tools.

  5. Launch to Codon Learning by clicking on the integration link. If prompted, click "Load Codon Learning in a new window".

  6. Select the desired course. If launching from a test course, select "LMS Test Course" (a simple Codon course for confirming functionality, added to your account by your Codon contact). Course selection is a one-time step.

  7. Click Save selection.

  8. You should see a message “Please close this page, and relaunch your Codon Learning course from your LMS.” This means you are successfully connected.

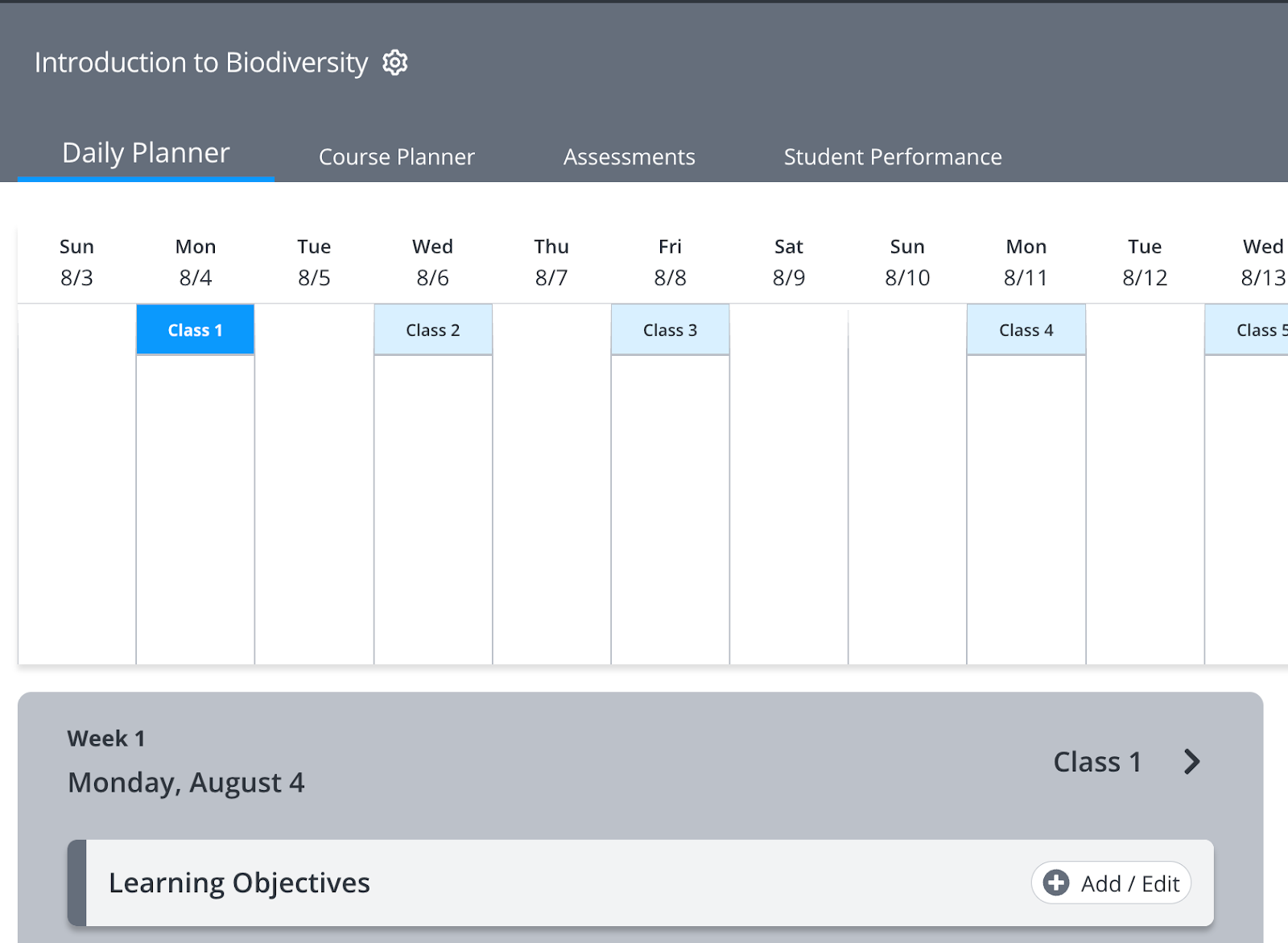

  9. If you relaunch the course from the LMS you will see Codon’s instructor course homepage.
